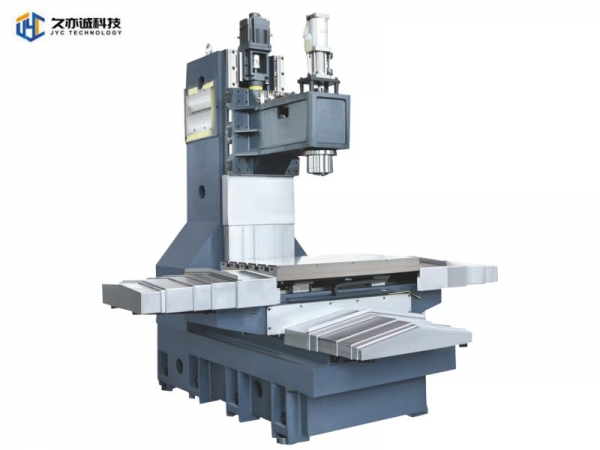

CV-1066/CV-1160/CV1266
High-efficiency machining center (three-axis rail)
- Order phone：+86-13306168278
- E-mail：peter@jyc-technology.com
Detail
Herringbone column structure design,rice reinforcement + tic-bar reinforcement, high bending stifness, and the bed ultra-high connection rigidity
HT300 castings, manual aging after secondary annealing.
Z-axis is desianed without counterweight block The servo motor with enlarged brake is adopted to adiust the feed processing without vibration
Three axes adopt 45mm wide linear guide, X, Y axis adopts six sliding block design.
Technical specification
|
Machinery specification |
Untis |
CV-1066 |
CV-1160 |
CV-1266 |
|
|
Processing range |
X-axis stroke |
mm |
1000 |
1100 |
1200 |
| Y-axis stroke |
mm |
600 |
600 |
640 |
|
| Z-axis stroke |
mm |
600 |
600 |
640 |
|
|
Workbench |
Workbench size |
mm |
1200*600 |
1200*600 |
1200*600 |
| Workbench bearing |
kg |
800 |
850 |
900 |
|
| Workbench T slote size |
|
5-18-100 |
5-18-100 |
5-18-100 |
|
| Distance from table to spindle nose |
mm |
120-720 |
130-730 |
130-730 |
|
|
Spindle |
Distance from spindle center to column track plane |
mm |
673 |
645 |
645 |
| Spindle taper hole specification |
|
BT40 Φ150 |
BT40 Φ150 |
BT40 Φ150 |
|
| Speed of spindle |
rpm |
10000(belt)/12000(direct connection) |
10000(belt)/12000(direct connection) |
10000(belt)/12000(direct connection) |
|
| Spindle motor power |
kw |
11/18.5 |
11/18.5 |
11/18.5 |
|
|
Triaxial |
Triaxial motor powerX/Y/Z |
kw |
2/2/3 |
3/3/3 |
3/3/3 |
| Triaxial rapid displacementX/Y/Z |
m/min |
48/48/36 |
36/36/24 |
36/36/24 |
|
| Triaxial cutting feed rate |
mm/min |
1-10000 |
1-10000 |
1-10000 |
|
|
Precision |
Positional accuracy |
mm |
±0.003/300 |
±0.003/300 |
±0.003/300 |
| Repeated accuracy |
mm |
±0.0025/300 |
±0.0025/300 |
±0.0025/300 |
|
|
Magazine tool |
Tool change type |
|
Disc type |
Disc type(Knife arm type) |
Disc type(Knife arm type) |
| Tool storage capacity |
pcs |
24 |
24 |
24 |
|
|
Others |
Power demand |
KVA |
20 |
20 |
20 |
| Barometric demand |
kg/cm^2 |
≥6 |
≥6 |
≥6 |
|
| Z-axis counterweight mode |
|
|
|
|
|
| Total weight |
kg |
6500 |
7000 |
7200 |
|
| Floor space(Length*width*height) |
mm |
2950*2600*2800 |
3100*2600*2800 |
3100*2600*2800 |
|
| Controller |
|
FANUC/Mitsubishi |
FANUC/Mitsubishi |
FANUC/Mitsubishi |
