H-630 Classic T Series bed
Heavy cutting horizontal machining center
- Order phone：+86-13306168278
- E-mail：peter@jyc-technology.com
Detail

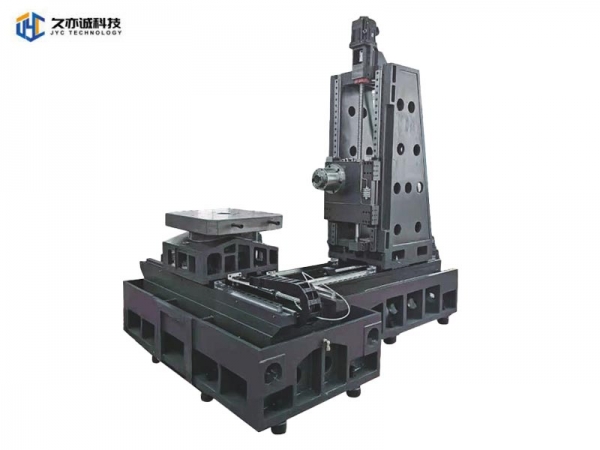

The main structure is T shape, full moving column structure, long span design, high rigidity, high strength.
Table around to achieve X axis,headstock up and down movement to achieve Y axis, column front and rear movement to achieve Z axis
Reasonable layout, advanced, compact structure.
The machine is equipped with 2 spiral chip removal + chain plate chip removal, chip removal, smooth drainage.
It is suitable for complex processing of automobile enqine, gearbox housing, construction machinery parts and steam turbine parts，
Technical specification
|
Machinery specification |
Untis |
H-630 |
|
|
Processing range |
Workbench size |
mm |
630*700 |
| Maximum load weight of workbench |
kg |
950 |
|
| Workbench quantity |
1 |
||
| Maximum working turning diameter |
mm |
Φ1300 |
|
|
The amount and speed of movement |
X-axis |
mm |
1050 Workbench left and right |
| Y-axis |
mm |
750 Headstock up and down |
|
| Z-axis |
mm |
900 Table q front and rear |
|
| Distance from spindle center to column track plane |
mm |
120-870 |
|
| Maximum speed of turntable |
rpm |
10 |
|
| Triaxial rapid displacementX/Y/Z |
m/min |
24 |
|
|
Motor |
Triaxial motor powerX/Y/Z/B |
kw |
4/4/4/2.5 |
| Spindle motor power |
kw |
15/18.5 |
|
|
Magazine tool |
Tool storage capacity |
T |
24T |
|
Precision |
Positional accuracy |
mm |
±0.012 |
| Repeated accuracy |
mm |
±0.008 |
|
|
Others |
Total weight |
kg |
13500 |
