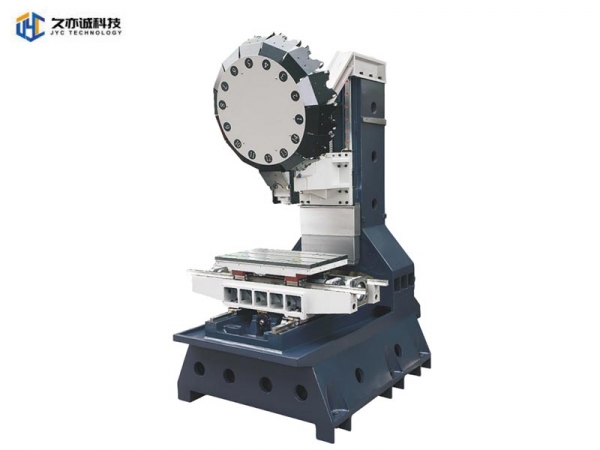

TV-600
High-speed drilling center
- Order phone：+86-13306168278
- E-mail：peter@jyc-technology.com
Detail
High rigid bed structure designDirect spindle drive system
The machine covers a small space, then the effective space to obtain the maximum use.
Body casting (material,HT300)
Triaxial bearing,NSK、FAG.
The machine covers a small space, then the effective space to obtain the maximum use.
Body casting (material,HT300)
Triaxial bearing,NSK、FAG.
Technical specification
|
Machinery specification |
Untis |
TV-600 |
|
|
Processing range |
X-axis stroke |
mm |
600 |
| Y-axis stroke |
mm |
400 |
|
| Z-axis stroke |
mm |
350 |
|
|
Workbench |
Workbench size |
mm |
700*420 |
| Workbench bearing |
kg |
300 |
|
| Workbench T slote size |
|
3-14*120 |
|
| Distance from table to spindle nose |
mm |
160-510 |
|
|
Spindle |
Distance from spindle center to column track plane |
mm |
448 |
| Spindle taper hole specification |
|
BT30 |
|
| Speed of spindle |
rpm |
15000/20000 |
|
| Spindle motor power |
|
5.5 |
|
|
Triaxial |
Triaxial motor power(Mitsubishi) |
kw |
1.5/1.5/3 |
| Triaxial motor power(FANUC) |
kw |
α8/α8/α12 |
|
| Triaxial rapid displacementX/Y/Z |
m/min |
48/48/48 |
|
| Triaxial cutting feed rate |
mm/min |
1-10000 |
|
|
Precision |
Positional accuracy |
mm |
±0.003/300 |
| Repeated accuracy |
mm |
±0.003/300 |
|
|
Magazine tool |
Tool change type |
|
Clip-on type |
| Tool storage capacity |
pcs |
16T |
|
|
Others |
Power demand |
KVA |
15 |
| Barometric demand |
kg/cm^2 |
≥6 |
|
| Total weight |
kg |
3200 |
|
| Floor space(Length*width*height) |
mm |
1700*2200*2250 |
|
| Controller |
|
FANUC/Mitsubishi |
