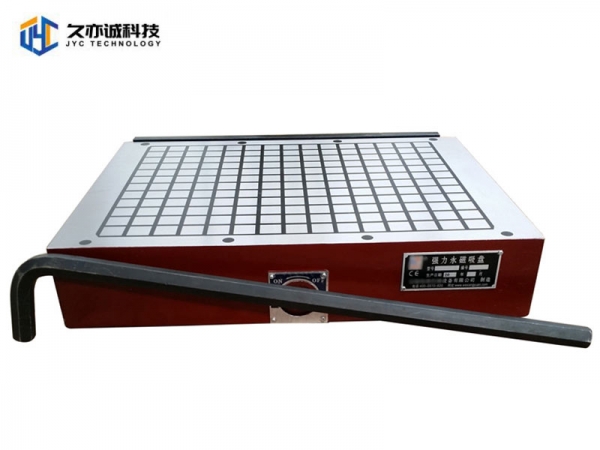

PMSC poweful permanent magnetic chuck

PMSC poweful permanent magnetic chuck

Order phone：+86-13306168278
E-mail：peter@jyc-technology.com

Detail

Features ·Suitable for CNC machining center, CNC engraving, milling machine, grinding machine, drilling machine and metal cutting.
·Strong magnetism, the attraction will change according to the contact area between workpiece and chuck, the bigger area, the stronger magnetism.
·Suction up to 180 N/cm2.
·No power supply, easy to operate, no heating deformation,no affection at the processing accuracy
·5 sides maching, increased productivity.
Magnetic chuck VS traditional clamping

Compared with traditional clamping, there are a lot of advantages for magnetic chuck,
Read more

Different magnet types

There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electropermanent magnetic chuck, each one has their advantages.
Read more

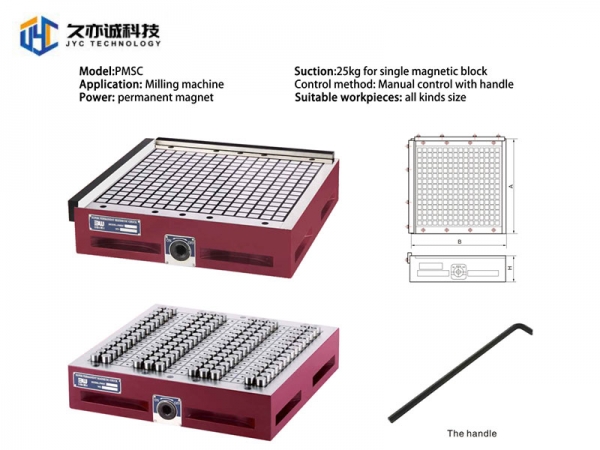

PMSC poweful permanent magnetic chuck

    Model No. Product dimension(mm) Magnetic block
    (pcs)    		 Magnetic force for
    one block (kgf)    		 Total suction
    (kgf)
    A B H
    PMSC-2025B 200 256 50 56 25 1400
    PMSC-2025A 253 252 90 90 2250
    PMSC-2040A 200 400 80 136 3400

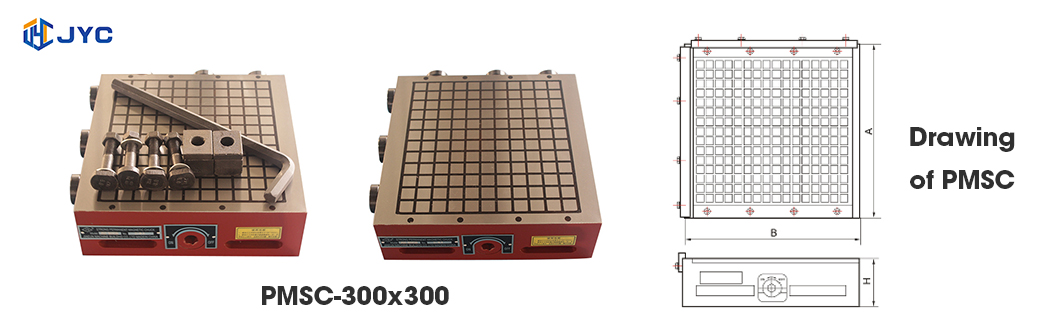

    PMSC-3030A 300 300 90 132 3300
    PMSC-3040A 300 400 90 176 4400
    PMSC-3040B 293 376 60 132 3300
    PMSC-30100A 300 1000 90 352 8800
    PMSC-3060A 300 600 90 275 6875
    PMSC-3535A 350 350 90 183 4575
    PMSC-4040A 400 400 90 240 6000
    PMSC-4050A 400 500 90 300 7500
    PMSC-4060A 400 600 90 375 9375
    PMSC-4080A 400 800 90 480 12000
    PMSC-5050A 500 500 110 400 10000
    PMSC-50100A 500 1000 110 800 20000
