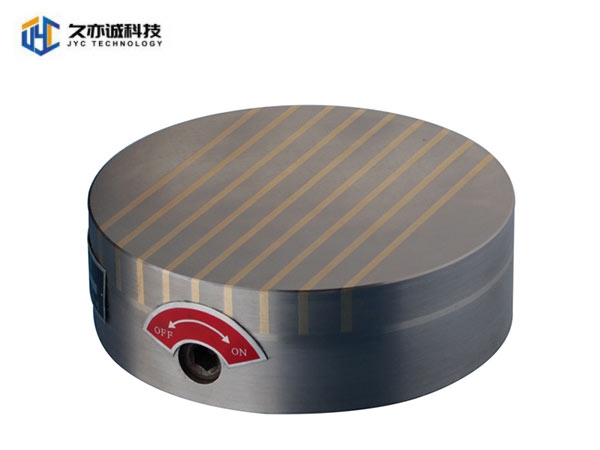

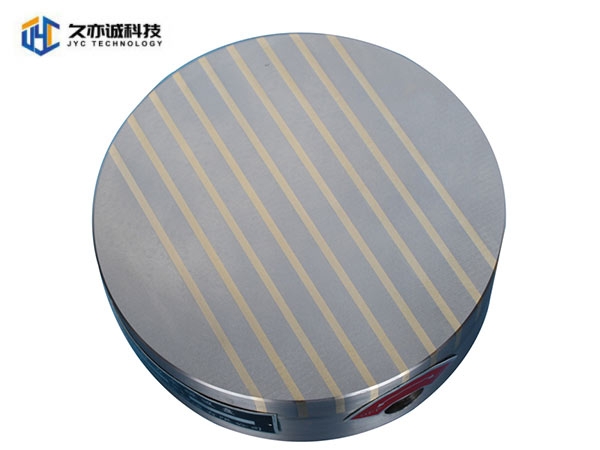

X51 Powerful round permanent magnetic chuck

Detail

Features

·Suitable for light cutting progress of small vertical plane grinder、outside cylindrical and internal grinder.
·No power supply, easy to operate, no heating deformation,no affection at the processing accuracy·
·Suction up to 150 N/cm2.
·Pole pitch：4mm+4mm or 4mm+12mm, customized
Magnetic chuck VS traditional clamping
Compared with traditional clamping, there are a lot of advantages for magnetic chuck
Read more
Different magnet types

There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electropermanent magnetic chuck, each one has their advantages.

X51 Powerful round permanent magnetic chuck

Specifications
Applications
Accessories

Model	Dimensions (MM)								Polar pitch	Net Weight (kg)

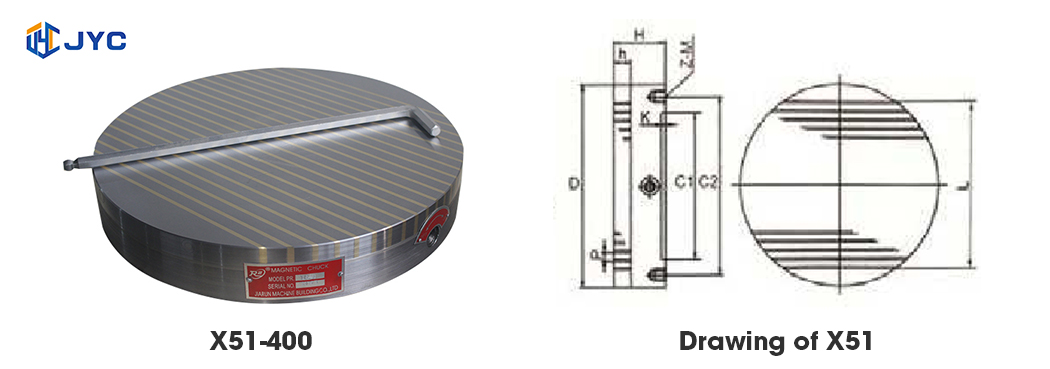

Model	D	H	h	C1	C2	K	Z	M	Polar pitch	Net Weight (kg)
X51-125	125	65	18	80	105	2	4	M8	16(4+12) or 8(4+4)	5.6
X51-150	150	65	18	110	130	2	4	M8		8
X51-160	160	65	18	120	140	2	4	M8		10
X51-200	200	65	20	160	180	2	4	M10		18
X51-250	250	65	20	200	224	4	4	M10		28
X51-300	300	65	20	230	260	4	4	M10		35
X51-350	350	65	22	260	310	4	4	M12		45
X51-400	400	70	22	300	360	4	6	M12		60
X51-450	450	70	25	350	410	4	6	M12		78
X51-500	500	70	25	380	440	4	6	M12		97
X51-600	600	75	25	480	540	4	6	M12		150
Note: Other specifications can be customized ,please call for further information.
