XM51 Round permanent magnetic chuck -
X61 permanent electromagnetic chuck for milling -
X11 electromagnetic chuck for grinding -
X91 poweful electromagnetic chuck for milling -
XM91 Dense pole permanent magnetic chuck -
XCM91 poweful permanent magnetic chuck -
PTM All steel electro permanent magnetic chuck -
XF51 Radial pole permanent magnetic chuck
XH42 Rotary permanent magnetic chuck
- Order phone：+86-13306168278
- E-mail：peter@jyc-technology.com
Detail
Features
·Suitable for all kinds of precision plane grinder, high precision grinding
·No power supply, easy to operate, no heating deformation,no affection at the processing accuracy
·angle adjustable: ±90°, with high precision calibrated scale·Suction up to 100 N/cm2. higher suction can be customized.
·Pole pitch：1mm+0.5mm, customized
Magnetic chuck VS traditional clamping
Compared with traditional clamping, there are a lot of advantages for magnetic chuck
Read more
Different magnet types
There are three types of magnet, permanent magnetic chuck, electromagnetic chuck, electropermanent magnetic chuck, each one has their advantages.
Read more
| Model | Dimensions (MM) | Net weight (KG) | ||||||||||||
| A | B | C | D | E | F | G | I | J | K | L | M | N | ||

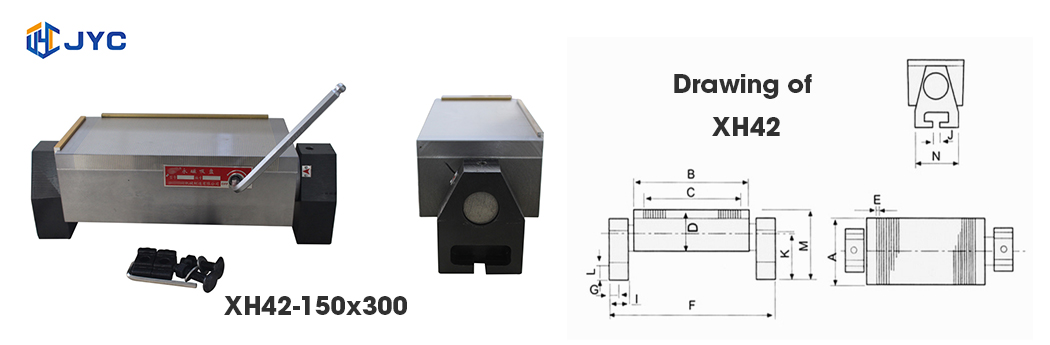

| XH42 100*175A | 100 | 175 | 135 | 100 | 1.5(1+0.5) | 292 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 18.5 |
| XH42 125*250A | 125 | 250 | 250 | 100 | 1.5(1+0.5) | 370 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 25 |
| XH42 150*150A | 150 | 150 | 150 | 100 | 1.5(1+0.5) | 270 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 21 |
| XH42 150*300A | 150 | 300 | 300 | 100 | 1.5(1+0.5) | 420 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 31 |
| Note: Other specifications can be customized ,please contact us for further information. | ||||||||||||||
